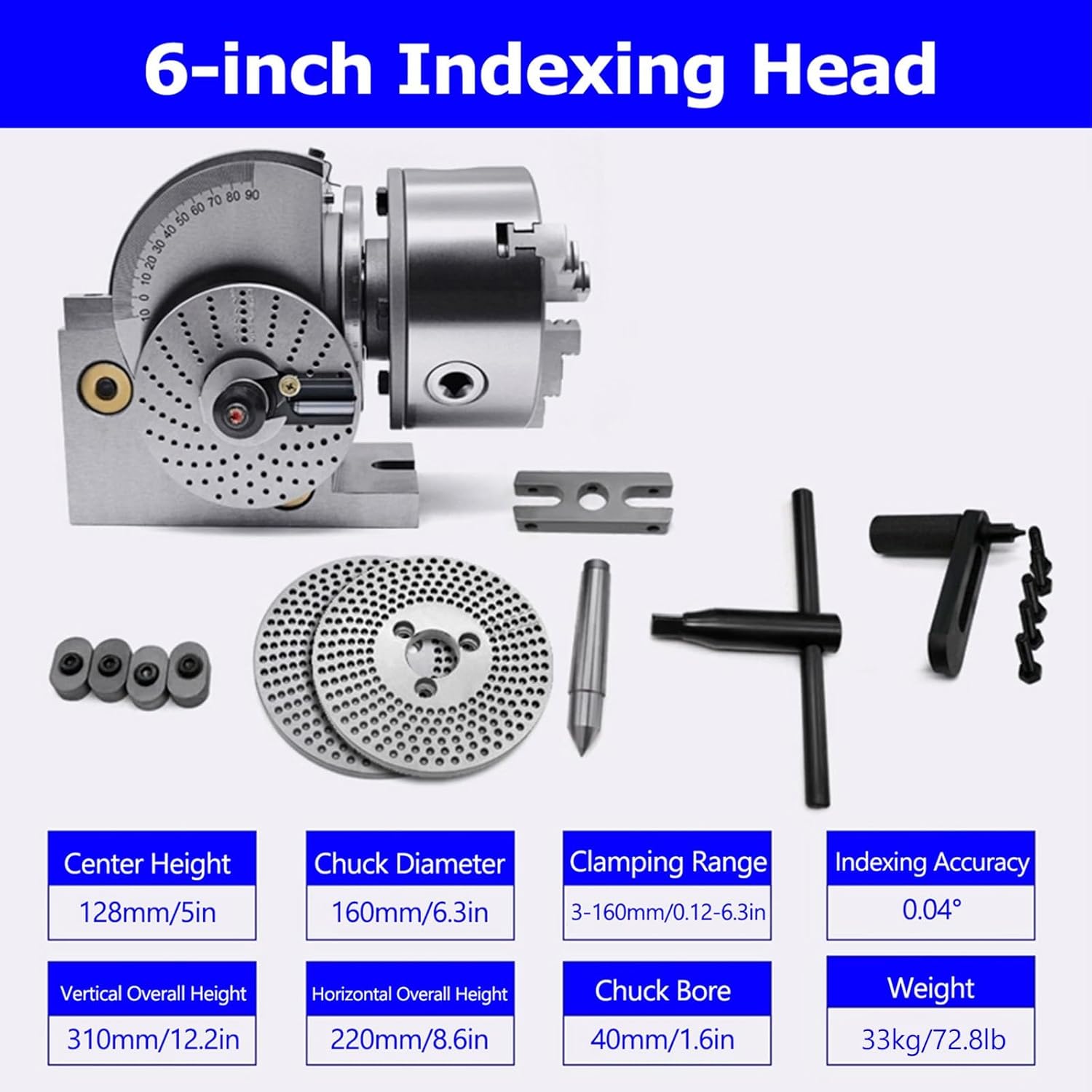

Universal Indexing Head for Rotary Table, Precision Milling Machine Indexing Head with Three-Jaw Chuck, Vertical/Horizontal Use, Adjustable Angle 0-90°(6in/160mm)

Product Name: Universal Indexing HeadColor: SilverMaterial: Cast IronCenter Height: 100mm/3.9 inches, 100mm/3.9 inches, 128mm/5 inches, 128mm/5 inchesChuck Diameter: 4 inches/100mm, 5 inches/125mm, 6 inches/160mm, 8 inches/200mmChuck Type: Three-jaw chuckClamping Range: 2.5-83mm/0.1-3.3in, 2.5-110mm/0.1-4.3in, 3-160mm/0.12-6.3in, 4-200mm/0.16-7.9inRefer to dimension chart for specific measurementsPackage Contents:1× Universal Indexing Head (Indexing Head ×1, Thrust Wrench ×1, Drive Adapter ×1, Honeycomb Plate ×2, Center Point ×1, Chuck Handle ×1, Spacers ×4)Features1. Can be used horizontally and vertically for exceptional convenience2. Cast iron construction ensures long-lasting durability3. Ideal for metal mold machining4. Includes multiple accessories for easier machining tasksNotes:1. Dimensions are manually measured and may have slight variations. Actual measurements prevail.2. Reasonable color differences may occur due to screen display variations. Actual product color prevails.3. If you have any questions or concerns about this product, please feel free to contact us.

• INCLUDED ACCESSORIES: This set does not include a tailstock. Accessories comprise (1 push rod wrench, 1 drive adapter, 2 honeycomb plates, 1 center point, 1 chuck handle, 4 shims), ensuring efficient and convenient operation.
• MULTIPLE SIZES: Our indexing heads are available in various sizes. Their surfaces feature hardened mirror polishing for exceptional wear resistance and durability, making them ideal for long-term use. Their compact components are perfect for mathematically dividing materials prior to cutting.
• EASY ADJUSTMENT: The indexing head base incorporates an integrated rotation mechanism. The indexing head spindle rotates vertically with the mechanism, offering a 0-90° rotation range. When used with honeycomb plates, it enables unequal division cutting.
• INDEXING PLATE: The universal indexing head comes with an indexing plate mounted directly on the spindle housing, along with interchangeable indexing plates featuring different numbers of holes. This indexing plate precisely sets the distance between each cut.
• FUNCTIONS AND APPLICATIONS: Capable of equally dividing workpieces along any circular arc or straight-line distance, and mounting workpieces at desired angles (vertical, horizontal, inclined). Widely used in automotive, mold manufacturing, general machinery, and other industries, playing a crucial role in machining processes.
